SKU: 1210430

Ball Valve Gas Brass R1/2 M x RC1/2 F T Handle

Bromic’s range of gas T-handle ball valves are manufactured with high quality brass, providing extensive durability with a maximum operating pressure of 2600kPa at nominal temperatures.

Approved by the Australian Gas Association for use with natural gas and LPG, these valves are 100% pressure tested and offer excellent flexibility, with a working temperature range between -20°C to 120°C and are commonly used in kitchen and backyard applications.

Features

High quality brass construction
Working temperature range between -20°C to 120°C
Maximum operating pressure at nominal temperatures of 2600kPa
Suitable for use with vacuum
100% pressure tested
Approved by the Australian Gas Association for use with natural gas and LPG
Used for kitchen and backyard applications

Specifications

Product Number

1210430

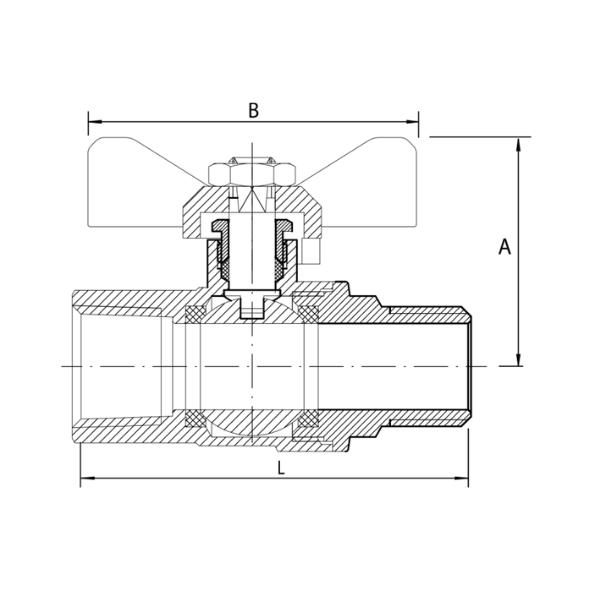

Dimension A (mm)

46.5

Dimension B (mm)

57

Dimension C (mm)

74.5

Pressure Rating (kPa)

2600kPa

AGA Approval Number

7425

Working Temperature Range

-20°C to 120°C

Brands

Bromic

Material

Brass

Handle Type

T-handle (Butterfly)

Inlet Connection ( Connector )

F

Inlet Connection ( Thread Size )

1/2"

Inlet Connection ( Thread Type )

R

Outlet Connection ( Connector )

M

Outlet Connection ( Thread Size )

1/2"

Outlet Connection ( Thread Type )

RC

Related files
File name Type Access

Requires Tradie Account

pdf.svg

T-Handle Ball Valves – Product Info

155.98 KB

pdf.svg

T-Handle Ball Valves – Product Info

155.98 KB

Download Open In New Tab
Product Information Sheet
