The 24kW 3 Phase Instant electric hot water heater supplies water to several water pick-ups, such as the kitchen and bathroom. The unit is equipped with electronic control and a clear LCD display. The model is rated to 24kW and has a temperature range between 30° to 60°C, delivering instant hot water to suit your home’s needs. The temperature lock allows for the maximum temperature to be set, and the built-in memory function, which stores the 3most frequently used temperatures, allows for easy temperature selection.
Product Number
2850324
Model
HF- 324
IP Rating
IP24
Element Type
Bare Element
Watermark Approval
WM 40268 (AS 3498)
Min Water Resistivity, ? cm (at 15°C)
1100
Min. Activation Flow Rate (L/min)
2.5
Pressure Range @ Main Water (MPa)
0.1-1
Hot Water Delivery, L/min (at T = 30°C)
10
Temperature Range
30° - 60°
Max. Working Prssure (kPa)
1000
Rated Power (kW)
24
Rated Current, A
33.4
Voltage (V)
415V
Depth (mm)
126
Width (mm)
245
Height (mm)
440
Weight (kg)
4
brands
Bromic
LCD Screen
+ Clearly displays desired outlet temperature
+ Displays inlet and outlet water temperatures,
the percentage of max. power the unit currently
uses, and the water flow rate.
Electronic Control
+ Ensures stability and smooth regulation of the water
temperature between 30° to 60°C. With 1°C steps.
Temperature Lock
+ Allows the user to set and save the maximum
temperature value (Child safety lock).
Temperature Memory Function
+Allows the user to save the 3 most frequently
used water temperatures.
No Flue required
| File name | Type |
Access
Requires Tradie Account |
|
|---|---|---|---|

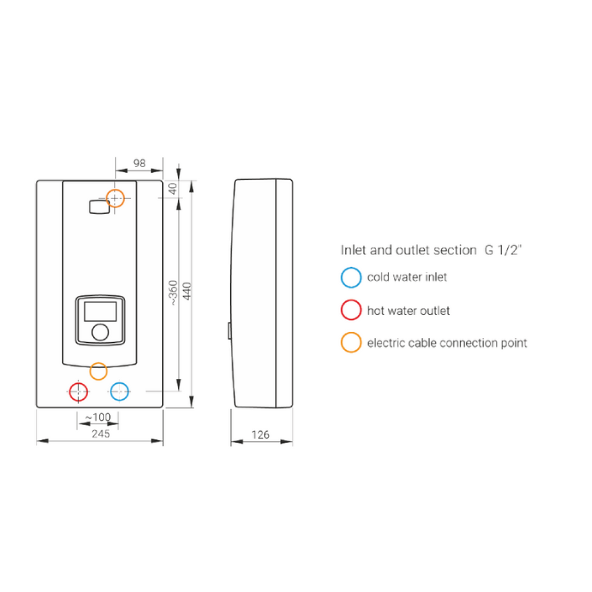

3 Phase Hot Water Technical Drawing Links 147.28 KB
|
Technical Drawing | ||
|
3 Phase Instant Hot Water – Info 510.59 KB
|
Product Information Sheet | ||
| Catalogue | |||
|
Bromic 3 Phase Electric Hot Water – Instruction Manual 1.65 MB Requires Tradie Account |
Manual |
