SKU: 10HBS3000

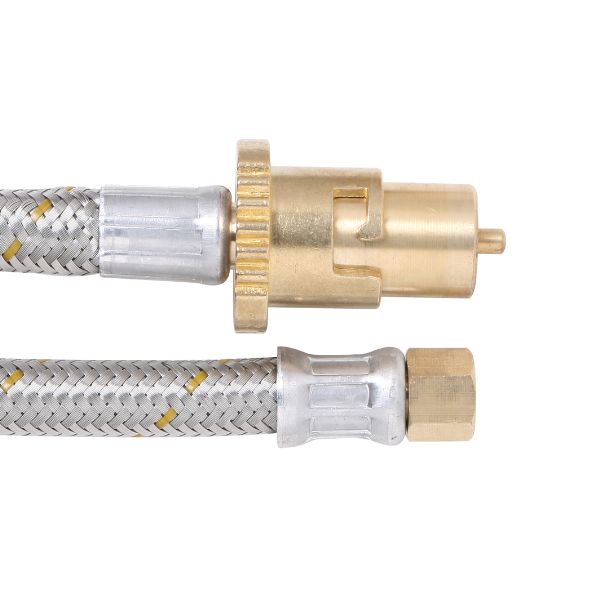

10mm SS Gas Hose 1/4″ BSP FF x Male Bayonet 3000mm

Bromic’s range of Class B, 10mm stainless steel braided gas hoses are manufactured with a high quality braid, providing extensive durability with a maximum working pressure of 2600 kPa. Approved by the Australian Gas Association for use with gas.

Features

AGA Approved

High pressure, high temperature hose type

Maximum working pressure 2600 kPa

Working temperature -20°C to +125°C

Application: kitchen, laundry, gas heaters

Approved to AS/NZS 1869

Specifications

Product Number

10HBS3000

Diameter(mm)

10

AGA Approval Number

5497

Max. Working Prssure (kPa)

2600

Min Working Temperature

-20

Max. Working Temperature

125

Brands

Bromic

Thread Size

1/4”

Thread Type

Bayonet, BSP

Connector

M

Fuel type

LPG

Material

Stainless Steel

Hose Length (mm)

3000

Gas Hose Class

B

Inlet Connection ( Connector )

M

Inlet Connection ( Thread Size )

1/4"

Inlet Connection ( Thread Type )

BSP

Outlet Connection ( Connector )

M

Outlet Connection ( Thread Type )

Bayonet
